Tool to create a graph from a git history showing tags, branches, stash nodes, cherry-picks.

Full documentation available online

Requirements

Create a graph

Run the following inside a git directory to write a graph description (DOT format) to stdout.

git-graphz

On linux you can use the following command to create a graph.ps file

git-graphz | dot -Tps -o graph.ps

Or you can simply (the file extension must be an accepted command line option of the dot utility (see here)

git-graphz -o image.pdf

In addition to the graphviz accepted extensions, it is also possible to generate an html page

git-graphz -o image.html

Example with range

git-graphz -r a51eced..HEAD | dot -Tps -o graph.ps

Example with upstream commits

git-graphz --option=--remotes=upstream

You can also provide an url for the git repository (instead of running the command in a git directory)

git-graphz -p https://github.com/SebastienRietteMTO/git-graphz.git

-v: to print info (or debug if provided twice) output to stderr
-m: show commit messages in nodes
-r range: to get a specific range of the repository. See here
-p path: to specify the directory containig the git repository (current working directory if omitted) or the url of a git repository
–option=OPTION: to add an option to the git log command used to list the relevant commits. If no option is provided the '–all' option is used. Ex: –option=–remotes=upstream

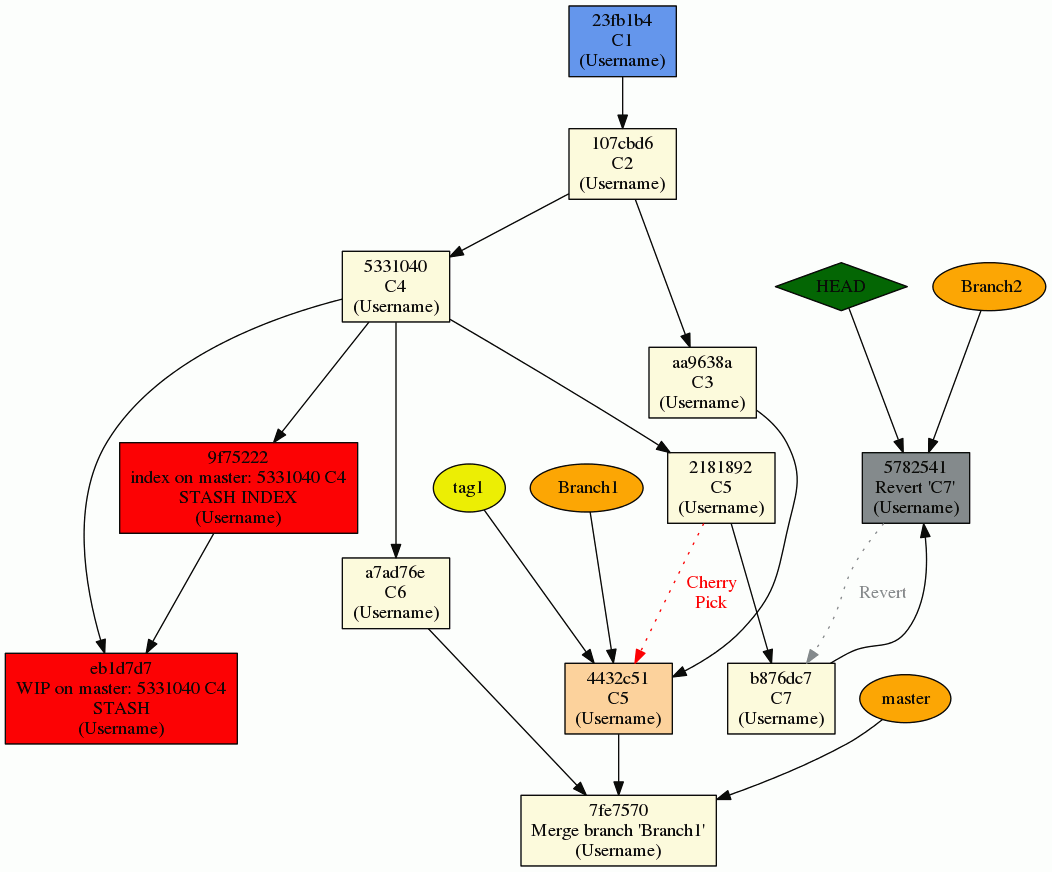

simple example
